2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66
-
प्रमुखता देना
8A PA66 Pluggable Terminal Block
,M2 Screw Pluggable Terminal Block Connector
,PCB Pluggable Terminal Block
-
रंगहरा
-
प्रकारस्त्री भाग
-
आवाज़ का उतार-चढ़ाव3.5 मिमी
-
वोल्टेज300V
-
मौजूदा8 ए
-
वायर रेंज16-30 एडब्ल्यूजी
-
पेंचएम 2
-
प्लास्टिकपीए66
-
धरती की लंबाई7 मिमी
-
दबाना पिंजरापीतल
-
उत्पत्ति के प्लेसचीन
-
ब्रांड नामSCED
-
प्रमाणनCE,UL
-
मॉडल संख्याटीपी381पी-20
-
न्यूनतम आदेश मात्रा1000 पीस/पीस
-
मूल्यUSD 0.051-0.12 per pole
-
पैकेजिंग विवरणमानक निर्यात पैकिंग कार्टन, या ग्राहकों की मांग के अनुसार।
-
प्रसव के समय5-20 कार्य दिवस
-
भुगतान शर्तेंएल/सी, टी/टी
-
आपूर्ति की क्षमता1000000 पोल/पोल प्रति माह

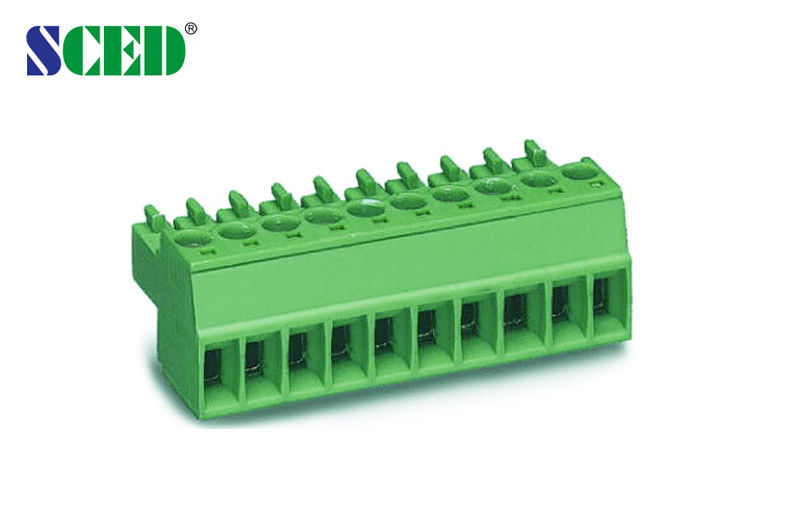

2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66
Female Pluggable Terminal Block 3.5mm Pitch 300V 8A 2-22 Poles PA66 M2 Screw
Detailed product Description:
Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

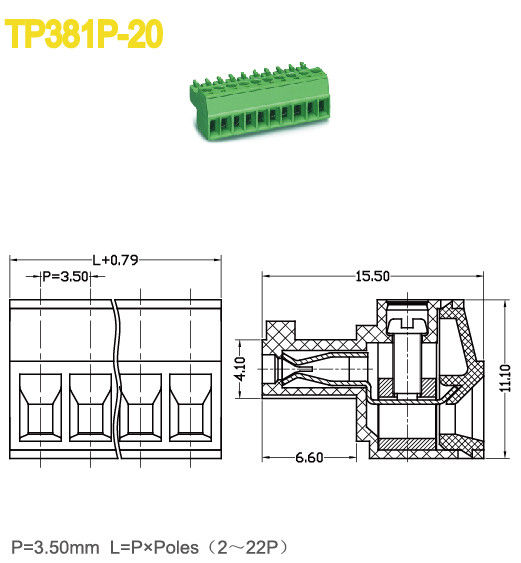

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 8 | ||
| Wire Range AWG | 16-30 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M2 / 2-2.2 | ||
Competitive Advantage:
- OEM and ODM service available
- More than 1000 models for selection
- High quality and competitive price
- Good service and quick response
Applications:
Normally, our products can be used in following:
1. Communication, Power Supply, Industrial Control, Medical Equipment
2. Security, PCB, Automation, Military, Rail Transportation
3. Server Site, Switch, Electric Lighting, Frequency Converter etc.
