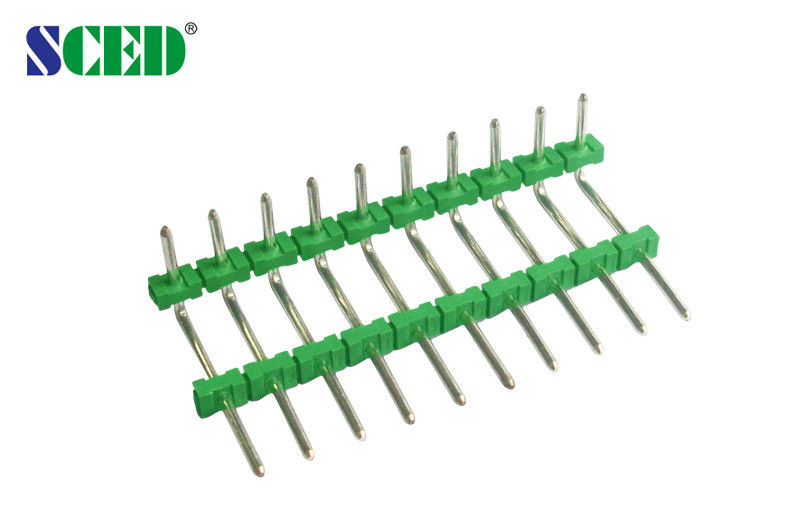

Plug - in Terminal Block Pitch 5.00mm 2 - 20P 300V 18A Header Male Pins
-
प्रमुखता देना
power distribution terminal block
,power terminal block connector
-
उत्पत्ति के प्लेसशेनझेन, चीन
-
ब्रांड नामSCED
-
प्रमाणनUL, CE
-
मॉडल संख्याTP500H-02V
-
न्यूनतम आदेश मात्रा500
-
मूल्यGet latest price
-
पैकेजिंग विवरणमानक निर्यात कार्टन
-
प्रसव के समय7-20 कार्य दिवस
-
भुगतान शर्तेंटी/टी
-
आपूर्ति की क्षमताप्रत्येक माह 1KK पोल
Plug - in Terminal Block Pitch 5.00mm 2 - 20P 300V 18A Header Male Pins
Plug - in Terminal Block Pitch 5.00mm 2 - 20P 300V 18A Header Male Pins
■Single Level; ■Double Levels; □Triple Levels
This male pin match with female plugs’ series: TP500P-01, TP500P-02
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 320 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.2 x 1.2 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
