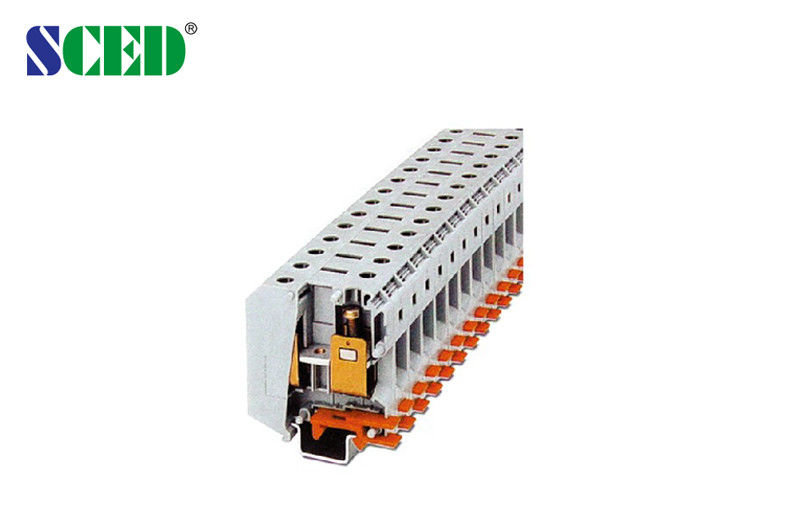

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0
-
प्रमुखता देना
rail mounted terminal blocks
,din rail mount terminal blocks
-
उत्पत्ति के प्लेसशेनझेन, चीन
-
ब्रांड नामSCED
-
प्रमाणनUL, CE
-
मॉडल संख्याटीआर-एच50
-
न्यूनतम आदेश मात्रा500
-
मूल्यGet latest price
-
पैकेजिंग विवरणमानक निर्यात कार्टन
-
प्रसव के समय7-20 कार्य दिवस
-
भुगतान शर्तेंटी/टी
-
आपूर्ति की क्षमताप्रत्येक माह 1KK पोल
Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0
Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0
Detailed product Description:
Terminal Width: 20.0mm, 600V 150A, AWG:6-1/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Grey | TR-H50 |
|
|
|
|
|
FBI 2-20 Imax: 150A FBI 3-20 |
|
|
EB 10-15 Imax:110A |
|
|
|
|
|
|
| Zack Strip White | ZB10 |
| Screwdriver | SZS 1.2×8.0 |
| Rail Material | aluminum |
| Dimensions mm | 20/70.5 |
| Height (U35: 7.5/U35: 15G 32) mm | 83.5/81.5 |
| Screw / Torque Nm | M6 / 6-8 |
| Stripping Length mm | 24 |
| IEC Technical Data | |
| Max. Load Current / Cross Section A / mm2 | 150 / 150 |
| Rated Surge Voltage / Contamination Class KV / - | 8 / 3 |
| Surge Voltage Category | Ⅲ |
Standard color:
Grey. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
