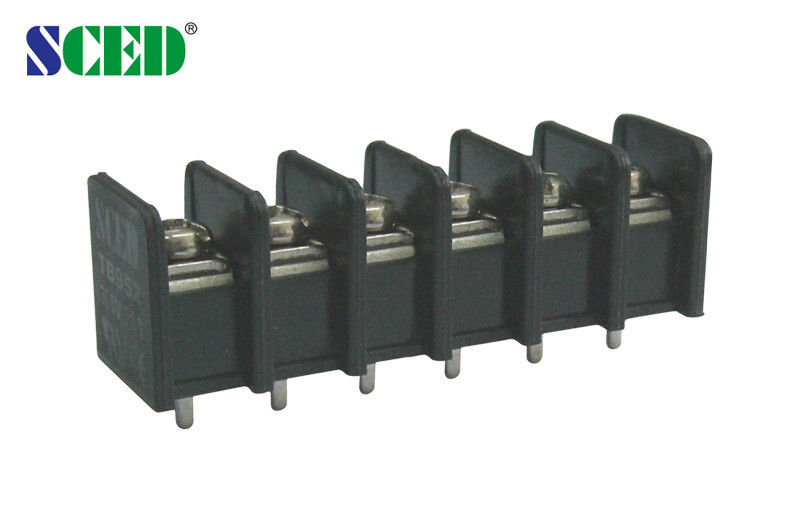

Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
-
प्रमुखता देना
Barrier PCB Terminal Blocks
,9.525mm Pitch PCB Terminal Blocks
,Brass Barrier Terminal Block
-
रंगकाला
-
पेंचएम 4
-
टॉर्कः10-13 lbf.in
-
प्लास्टिकस्वाभाविक
-
डंडे2-24 डंडे
-
मौजूदा20ए
-
वोल्टेज300V
-
आवाज़ का उतार-चढ़ाव9.525 मिमी
-
उत्पत्ति के प्लेसचीन
-
ब्रांड नामSCED
-
प्रमाणनUL,CE,CUL,CQC and VDE etc.
-
मॉडल संख्याटीबी952-00
-
न्यूनतम आदेश मात्रा1000 पीस/पीस
-
मूल्यUSD 0.048-0.11
-
पैकेजिंग विवरणमानक निर्यात पैकिंग कार्टन, या ग्राहकों की मांग के अनुसार
-
प्रसव के समय5-20 कार्य दिवस
-
भुगतान शर्तेंएल/सी, टी/टी
-
आपूर्ति की क्षमता1000000 पोल/पोल प्रति माह
Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/20 | 300/10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 4/ 10-13 | ||
Competitive Advantage:
- Good quality and reasonable price
- Quick response and good after-sales service
- More than 1000 models for selection
- OEM and ODM servicce
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
