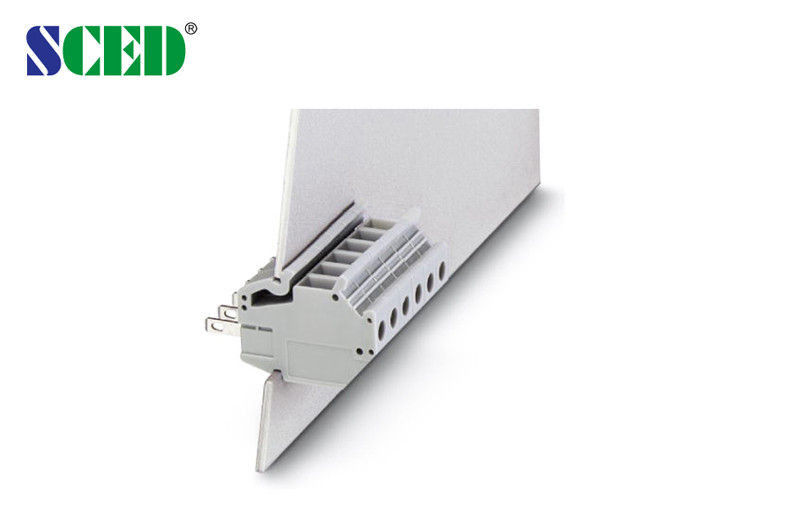

Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through
-
प्रमुखता देना
panel mount terminal blocks
,feed through terminal blocks
-
टर्मिनल चौड़ाई6.20 मिमी
-
रेटेड वोल्टेज/करंट300V/15A
-
आवासपीए66/यूएल 94वी-0
-
रंगस्लेटी
-
रंगस्लेटी
-
वायर रेंज12-28
-
वायर रेंज12-28
-
धरती की लंबाई9 मिमी
-
पेंचएम3/स्टील/जिंक प्लेटेड
-
दबाना पिंजरापीतल/निकल चढ़ाया हुआ
-
उत्पत्ति के प्लेसशेनझेन, चीन
-
ब्रांड नामSCED
-
प्रमाणनUL, CE
-
मॉडल संख्याटीआर-4एन-01
-
न्यूनतम आदेश मात्रा200
-
पैकेजिंग विवरणमानक निर्यात कार्टन
Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through
Through Panel Mount Terminal Blocks Vertical Wire Inlet Feed Through
Photo Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
12-28 |
|
12-28 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 17.5 |
400 / 17.5 |
630 / 17.5 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9 |
||
|
Screw / Torque / lbf.in |
M3 / 5.3-7 |
||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
